Adding a PaperCut printer to your Mac is not difficult, but it is rather specific. Follow this guide and you'll be up and running in no time!
This guide was created using MacOS 10.12. If you are using an earlier operating system, like OS X 10.6 or 10.8, your experience may differ. Please send us an email at email@example.com if you run into any difficulties!
Install Printer Drivers
Before adding a PaperCut printer sure to download and install the correct printer drivers for the printer you want to use. Check out this CAIT article for a printer list and links to drivers:
1. System Preferences
Open System Preferences and click on Printers & Scanners
2. Add a Printer
Click on the + to add a new printer.
Depending on your macOS or OS X version you might see a dropdown menu after clicking +, in which case click on Add a Printer or Scanner.
3. Add the Printer
Click on IP, next to Default, and match the settings on your computer with this screenshot.
In this example we're adding the Library-BW printer. Make sure to set the Protocol as Line Printer Daemon - LPD.
You can set the Name to whatever you would like. That is what this printer will show up as on your computer.
The Location option can be left blank, or you can fill it in, it has no effect on your ability to print.
Here is a quick list of some of the most commonly used printer queues:
- MusicMFP -- the Music School Copier
- Library-BW -- the Library printers for B/W printing
- Library-Color -- the Library printers for color printing
- Theater-Copiers -- the Theater student copiers in MO1, MO2, and the Design Studio
4. Choose Print Driver
Click on the Use: dropdown menu, where it says Generic PostScript Driver.
4.1. Click on Select Software
Make sure you've installed the print drivers for this printer before doing this step, otherwise we won't have any print drivers to select!
4.2. Find the Printer Model
- The MusicMFP copier is a Ricoh MP C6503
- Both Library printers are Ricoh Aficio SP 831DN's
- The Theater copiers are Ricoh MP C2504's

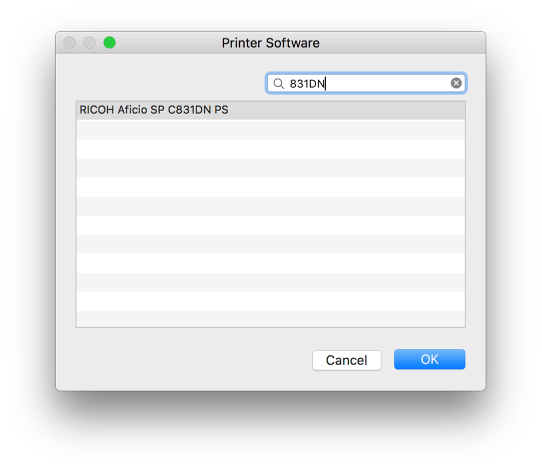

A quick way of finding the right driver is to type in a portion of the printer model into the Filter window, like "831DN".
4.3. Select the Printer and click OK
You should now see the printer listed in the Use: dropdown menu.
If the Add Printer window looks like this you've done it correctly!
Click the Add button and make sure the green dot appears below the printer name.
5. Install the PaperCut Client
All that's left is to install the PaperCut client! Click on this CAIT article to find out how to do that:
